BOBCAT Bobcat 6717637 Krautuvų aušinimo sistema (2020 m.)

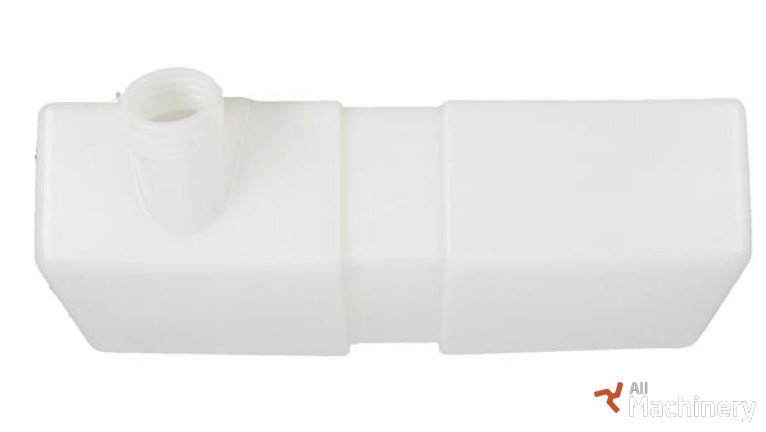

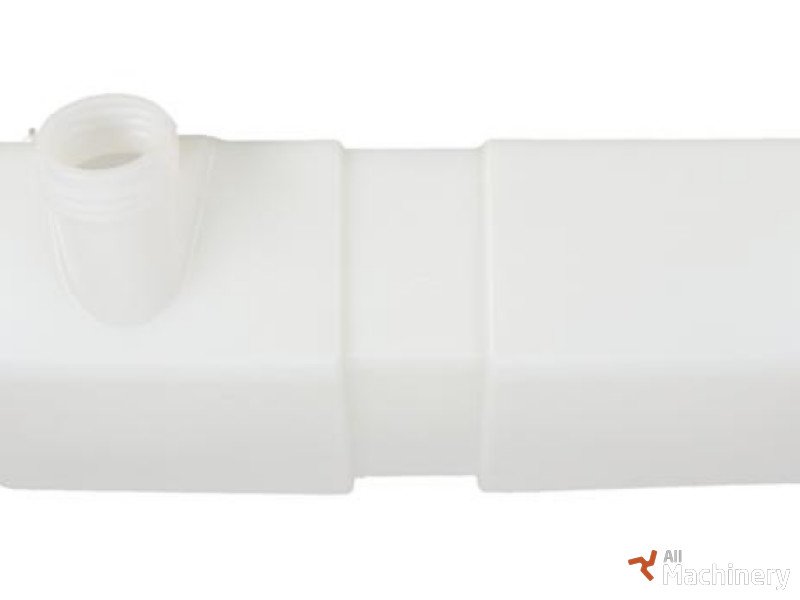

Extension tank Bobcat 6717637

Shape of the expansion tank mainly square/rectangular
Specific shape of the expansion tank rectangular stepped and/or bevelled
Cap present YES
Type of cap cap with inner thread
Total number of connections 1
Number of hose connections 1
Sensor present NO
Type of fixation none
Maximum height without cap H1 (mm) 225
Maximum height with cap, if present H2 (mm) 228
Total length L1 (mm) 406
Total width W1 (mm) 75
Biggest diameter of the hose connection D3 (mm) 9.6
Connection diameter of the cap D7 (mm) 51.4
Outer diameter of the cap D8 (mm) 63.4
Diameter of the cap connection on the tank D9 (mm) 54.7
Hose present NO
Material plastic
