Type of pump:gearpump
Number of elements:1
Type of flange:type J
Diameter of flange mounting holes D1 (mm):8.5
Center distance of mounting holes flange C1 (mm):71.4
Center distance of mounting holes flange C2 (mm):96
Total length of pump L1 (mm):116.2
Neck diameter D2 (mm):36.5
Type of shaft:type G
Distance from flange to end L2 (mm):34.5
Diameter of shaft D3 (mm):10.6
Key (way) width W (mm):2.4
Thread type (on shaft) TA2:M8
Direction of rotation:clockwise
Position of suction port 1st element, only for pump type T POS-CO1:side
Type of connections suction port1st element, only for pump type T TY-COa:type E
Thread type suction side of 1st element TA-Pa:1/2 BSP
Position of pressure 1st element, only for pump type T POS-CO2:side
Type of connections pressure 1st element, only for pump type T TY-COb:type E
Thread type pressure side of 1st element TA-Pb:1/2 BSP
Flow control valve present:NO
Material of the housing:aluminium
www.machinerypartsonline.eu
www.machinerypartsonline.com.au

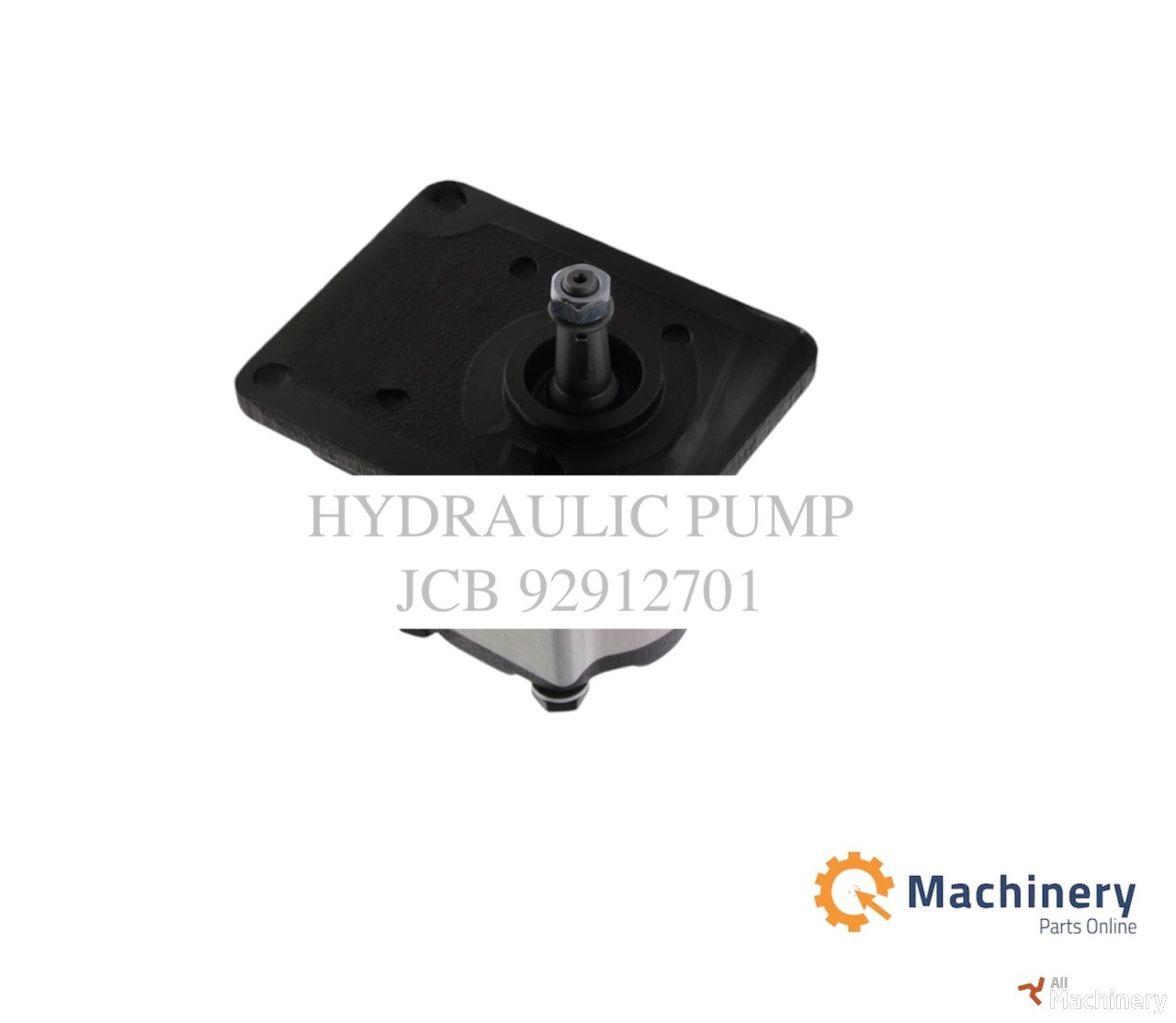

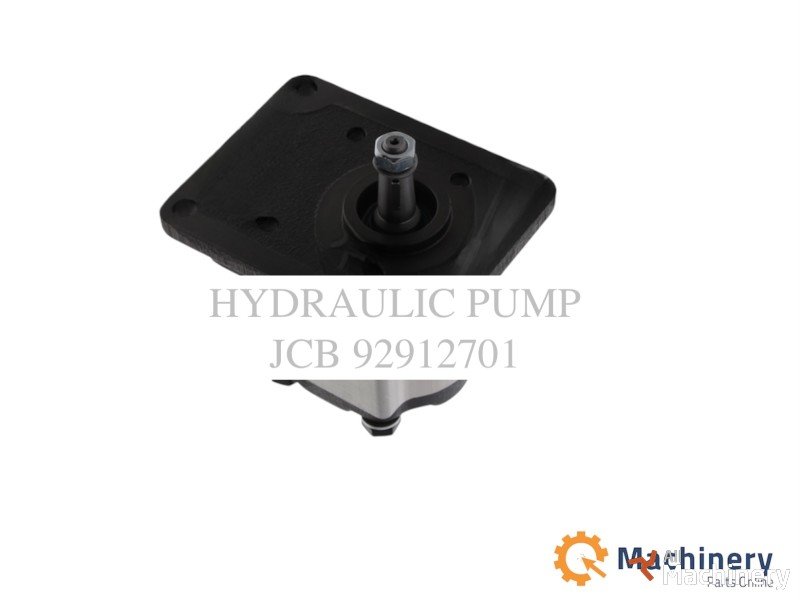

HYDRAULIC PUMP JCB 92912701
Type of pump:gearpump
Number of elements:1
Type of flange:type J
Diameter of flange mounting holes D1 (mm):8.5
Center distance of mounting holes flange C1 (mm):71.4
Center distance of mounting holes flange C2 (mm):96
Total length of pump L1 (mm):116.2
Neck diameter D2 (mm):36.5
Type of shaft:type G
Distance from flange to end L2 (mm):34.5
Diameter of shaft D3 (mm):10.6
Key (way) width W (mm):2.4
Thread type (on shaft) TA2:M8
Direction of rotation:clockwise
Position of suction port 1st element, only for pump type T POS-CO1:side
Type of connections suction port1st element, only for pump type T TY-COa:type E
Thread type suction side of 1st element TA-Pa:1/2 BSP
Position of pressure 1st element, only for pump type T POS-CO2:side
Type of connections pressure 1st element, only for pump type T TY-COb:type E
Thread type pressure side of 1st element TA-Pb:1/2 BSP
Flow control valve present:NO
Material of the housing:aluminium
