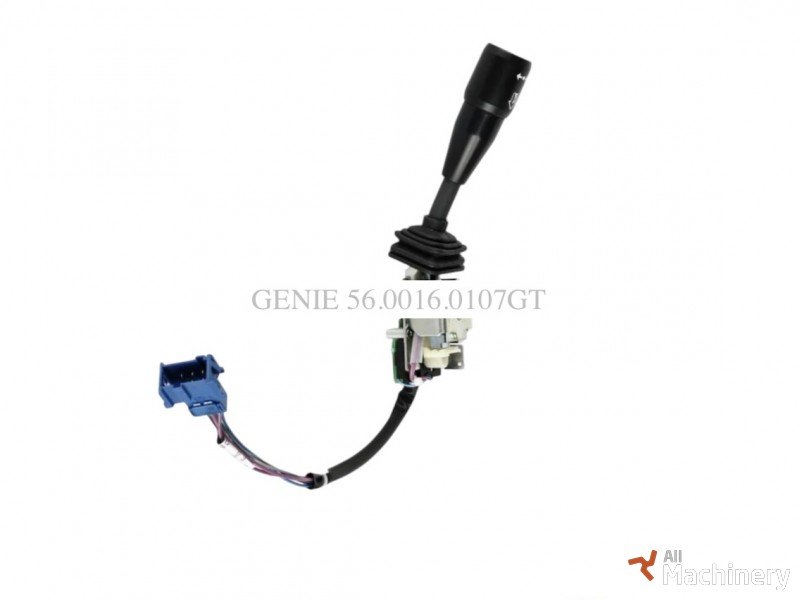

GENIE 5.600.160.107GT STEERING COLUMN SWITCH
GENIE 56.0016.0107GT is a forward and reverse shifter switch used in the drive control system of Genie telehandlers and lift equipment. This component allows the operator to select travel direction and is essential for normal machine operation.
Designed as a direct replacement, this switch matches original fit and function and is suitable for use in demanding work environments. It is commonly installed when restoring directional control on machines affected by wear, damage, or electrical failure. Proper installation helps ensure consistent response and safe operation of the equipment.
This part is compatible with a wide range of Genie GTH, TH, and AGRI series machines across specific serial number ranges. Always verify the machine model and serial number to confirm correct application before ordering.
Total length:222 mm
Total width:46 mm
Total height:110 mm
Length of the wire:260 mm
Number of mounting holes:5
Shortest center distance between mounting holes:28.0 mm
Longest center distance between mounting holes:38 mm
Thread size:M4
Pitch metric:0.70 mm
Type of the connection:Wire with connector
Number of connections:1
Number of levers:1
Control functions present:Forward,Reverse,Neutral lock,Neutral
Features present:Horn
GTH-3007 (from serial number GTH300716M-101 to serial number GTH300719M-500)
GTH-2506 (from serial number GTH250617M-501 to serial number GTH250619M-1000)
GTH-2506 AU.3 (from serial number GTH250617M-501)
GTH-3007 AU.3 (from serial number GTH300716M-101)
GTH-5519 (from serial number 19006 to 20367)
AGRI-730 (from serial number 19241 to serial number 20363)
GTH-3007 (from serial number 19051 to 20630)
GTH-3007 (from serial number 20632 to 20709)
GTH-2506 AU.2 (from serial number 19002 to serial number 99999)
TH-1955 (from serial number 19925)
GTH-2506 (from serial number 18957 to 20327)
GTH-2506 (from serial number 20329 to 20378)
AGRI-625 (from serial number 19057 to serial number 20377
GTH-2506 (serial number 20328)
GTH-2506 (from serial number 20379 to 25046)
GTH-3007 (serial number 20631)
GTH-3007 (from serial number 20710 to 25070)
GTH-5519 (from serial number 20368 to 25040)
GTH-3007 FMS (from serial number 21825 to serial number 99999)
GTH-5519 (from SN GTH5514B-101 to GTH5516B-4410, from SN GTH5516M-4411 to GTH5516M-5799)
GTH-5519 (from SN GTH55M-5800 to GTH55M-11699)
GTH-2506 (from serial number GTH250614-101 to GTH250616B-259, from serial number GTH250616M-260 to serial number GTH250617M-470)
GTH-2506 AU.3 (from serial number GTH250615B-157 to GTH250616B-259, from serial number GTH250616M-260 to serial number GTH250617M-470)
GTH-3007 AU.2 (from serial number 19395 to 25070)
