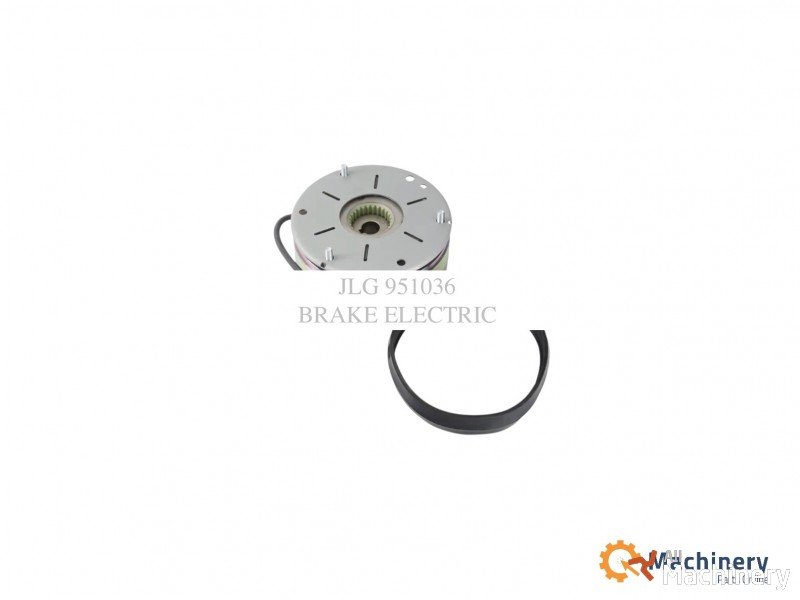

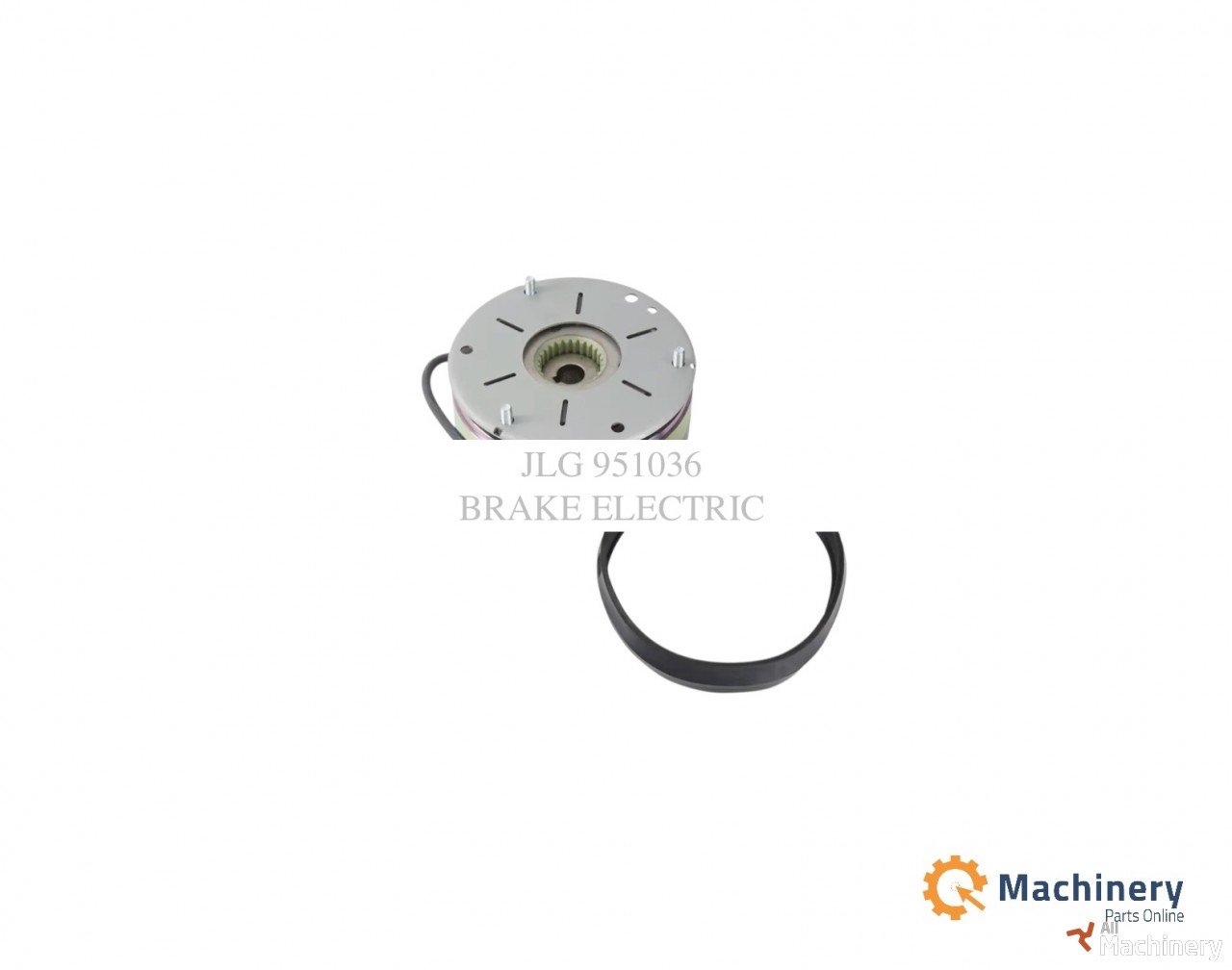

JLG 951036 Electric Brake, 20V / 30W / 18Nm holding torque.
OEM replacement electromagnetic brake with 130 mm external coil diameter, aluminium brake disc, single friction plate, and integrated coupling (Ø15 mm max). Compatible with various JLG ES series scissor lifts. Ideal for reliable motor braking and safe load holding.
External Ø coil D1:130 mm
Internal Ø coil D3:44 mm
Center distance C:97 mm
Voltage coil 1 U1:20 V
Capacity coil 1 P1:30 W
Torque coil 1 M1: 18 N.m
Lever YES/NO LEV: NO
Plug YES/NO FIC: NO
Regulation ring couple RING: NO
Micro switch YES/NO MCR: NO
Adjustable air gap YES/NO LU-SP: NO
Fixation bolts YES/NO BV-BO: YES
Number of friction plates AT-PL:1
Dust cover YES/NO ST-AF: NO
Number of brake discs AT-RS: 1
Material of brake disc MAT-RS: aluminium
Coupling YES/NON MNM: YES
Maximal internal Ø coupling D5:15 mm
The JLG 951036 Electric Brake is commonly used in various JLG electric scissor lifts and access platforms, including but not limited to:
JLG 1930ES
JLG 2030ES
JLG 2646ES
JLG 3246ES
JLG 2630ES
Important: Compatibility may vary by serial number and production year. Always verify your existing brake part number (951036) or confirm dimensions before ordering.
If unsure, contact us with your machine model and serial number for confirmation.
Why Choose This JLG 951036 Brake?
When safety and precision matter, this brake provides:
Consistent electromagnetic engagement
Proper static holding torque (18 Nm)
Durable aluminium disc construction
Direct OEM fitment
Reduced downtime for lift equipment
ORDER ONLINE: https://machinerypartsonline.eu/product/jlg-951036-electric-brake-20v-30w-18nm/
