Sort of traction wheel SRT-WH:standard traction wheel
Diameter of the wheel D1 (mm):255
Width of the wheel W1 (mm):76
Diameter of the rim D2 (mm):205
Width of the rim W2 (mm):76.5
Shaft diameter D8 (mm):50
Inner offset of the flange OFF-IN (mm):46
Outer offset of the flange OFF-OUT (mm):21
Thickness of the flange TH-FL (mm):10
Material of the wheel (grouped) MAT-WH:rubber
Shape of the tread SH-TRED:cylindrical
Wheel profile PROF-WH:rib
Material of the rim MAT-RIM:steel
Groove for seal ring present SEAL-PR:NO
Cam present CAM-PR:NO
Number of bolt holes QTY-BO:6
Type of bolt hole TY-BO:conical countersunk
Diameter of the bolt holes D13 (mm):11
Biggest diameter of the bolt holes D14 (mm):16
Height of the countersunk bolt hole H5 (mm):3
Pitch circle diameter D15 (mm):70
Centre distance of the bolt holes C1 (mm):35
Rim and tyre RIMTYR:NO
Suitable for coldstore use SUF:NO
One side is closed CL:NO
www.machinerypartsonline.eu
www.machinerypartsonline.com.au

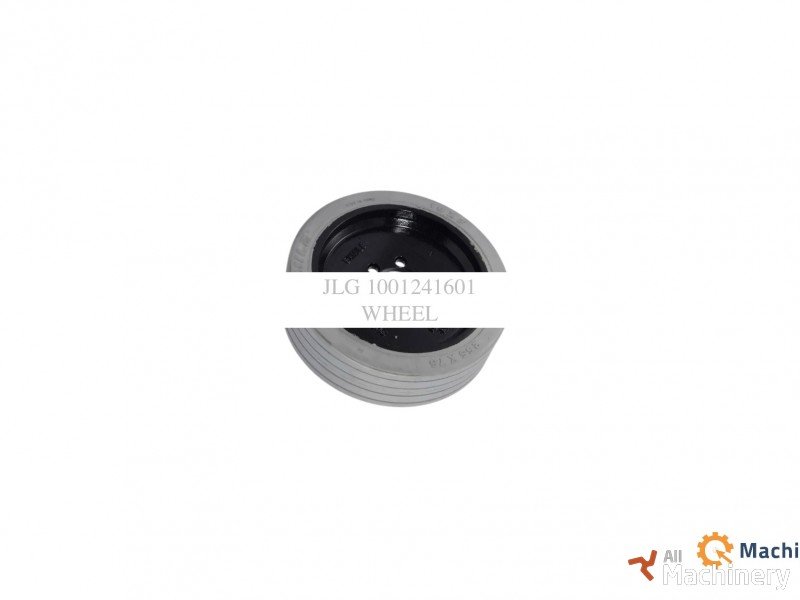

WHEEL JLG 1001241601
Sort of traction wheel SRT-WH:standard traction wheel
Diameter of the wheel D1 (mm):255
Width of the wheel W1 (mm):76
Diameter of the rim D2 (mm):205
Width of the rim W2 (mm):76.5
Shaft diameter D8 (mm):50
Inner offset of the flange OFF-IN (mm):46
Outer offset of the flange OFF-OUT (mm):21
Thickness of the flange TH-FL (mm):10
Material of the wheel (grouped) MAT-WH:rubber
Shape of the tread SH-TRED:cylindrical
Wheel profile PROF-WH:rib
Material of the rim MAT-RIM:steel
Groove for seal ring present SEAL-PR:NO
Cam present CAM-PR:NO
Number of bolt holes QTY-BO:6
Type of bolt hole TY-BO:conical countersunk
Diameter of the bolt holes D13 (mm):11
Biggest diameter of the bolt holes D14 (mm):16
Height of the countersunk bolt hole H5 (mm):3
Pitch circle diameter D15 (mm):70
Centre distance of the bolt holes C1 (mm):35
Rim and tyre RIMTYR:NO
Suitable for coldstore use SUF:NO
One side is closed CL:NO
