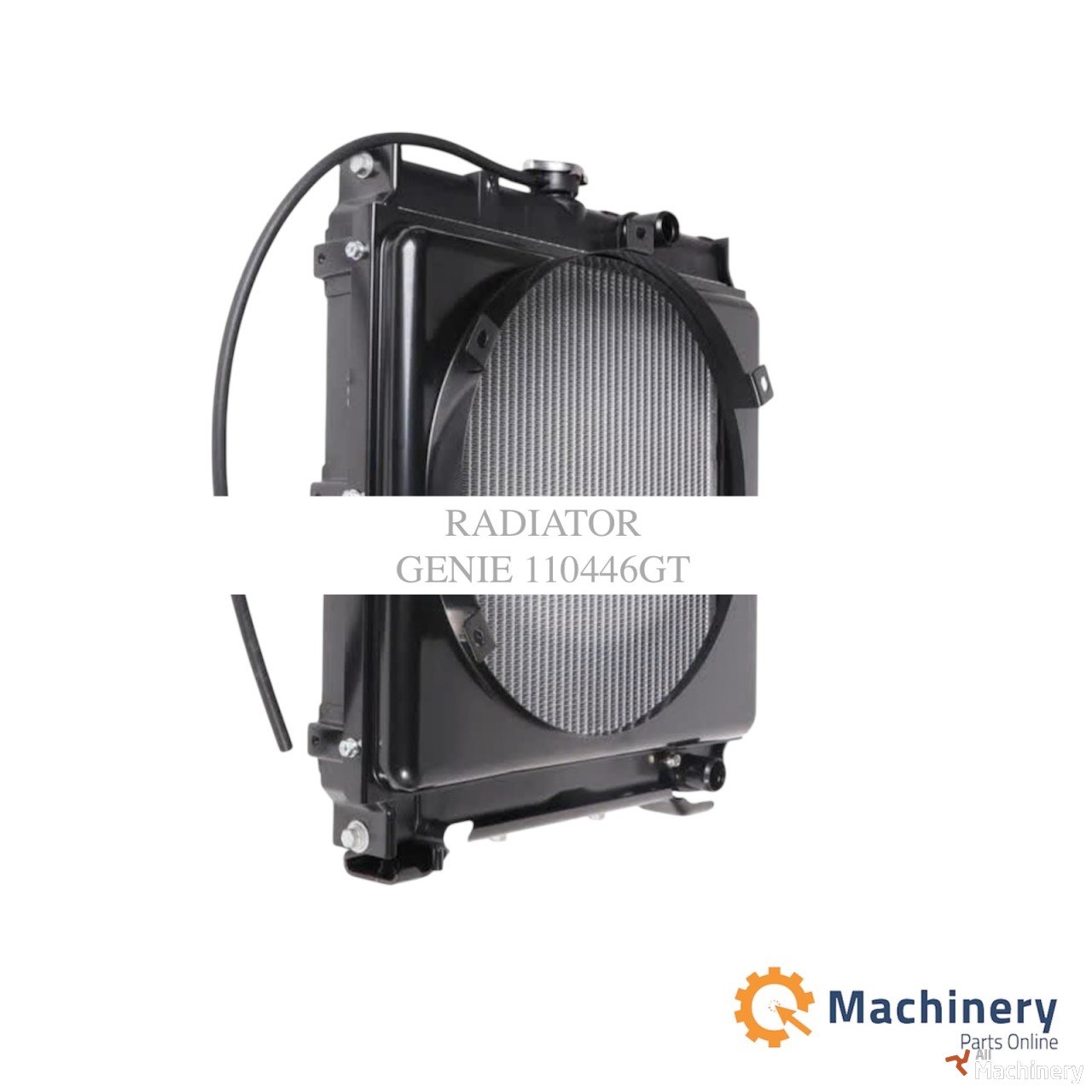

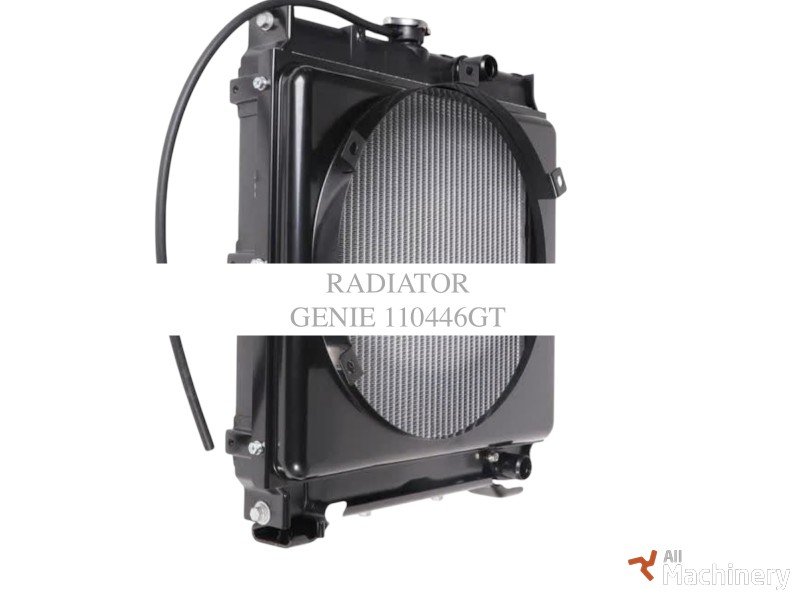

RADIATOR GENIE 110446GT

Radiator type:horizontal
Position radiator cap:M2
Position of input water connection:L
Outer diameter of the input water connection D1 (mm):26.5
Position of output water connection:R
Outer diameter of the output water connection D2 (mm):26.5
Center distance between input and output water connection L3 (mm):418
Position draincock:23
Length without accessories or mounting plates L1 (mm):387
Height without accessories or mounting plates H1 (mm):400
Width without accessories or mounting plates W1 (mm):60
Total length with accessories or mounting plates L2 (mm):417
Total height with accessories or mounting plates H2 (mm):464
Total width with accessories or mounting plates W2 (mm):112
Position oil cooler:without
Thickness of core of the radiator W3 (mm):37
Center distance of the fins L5 (mm):10
Diameter of the wind tunnel D3 (mm):328
Length of the core of the radiator L6 (mm):355
Height of the core of the radiator H3 (mm):298
Material collector:plastic
Material core:aluminium
Weight (kg):7
